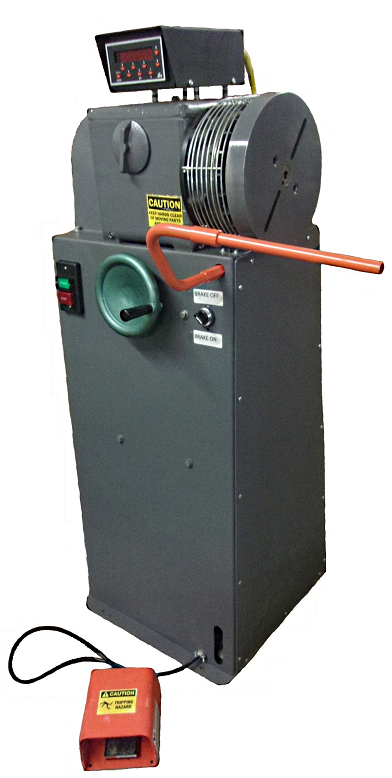

Automatic Stop
Model: 2015 & 2016
 |
Features an easy to set, six digit,
touch control electronic counter with large digital
readout. Preset counter to number of turns required. The
winder will stop instantly when preset number is
reached. Release foot switch and press reset. The winder
is ready for the next coil.
For operator safety, in case of
emergency, the winder will stop instantly when the foot
switch is released. The foot switch has a long cord for
convenient positioning. It utilizes a heavy-duty spur
drive gearbox, engineered for extra heavy-duty
applications requiring exceptional pulling power.
All controls and speed adjustments
are at the operator's fingertips on the front of the
winder. Requires air to operate the brake & clutch,
70-PSI pressure and 5.0 cu. in. Consumption to operate.
Additional specifications same as 2000 Series manual
models.
Capacity: Maximum torque: fast speed, 210 in Lbs;
slow speed, 775 in Lbs. Change speed with gearbox
selector.
Dimensions: 19" x 20 3/4" base, 47 3/4" height.
Shaft Center height 42 1/2".
Face Plate: 10 in. Diameter.
Machine Control: Electronic Turns Counter With
Digital Keypad and Display, adjust speed and Count Decel from Front Panel.
Note:These
machines can be used with tensioning device or hand wire
tension.
|
|
No phone orders. P.O by fax or E-mail only.
A 4% Credit Card processing fee will be
added to applicable orders.
|
Model # |
Description |
Price- US. Dollars |
Packing & Handling |
Weight |
|
Domestic |
Export |
|
2015 |
Auto. Stop
Electronic Counter 115V, 60 Hertz*
Single Phase |
$21,298.00 |
$100.00 |
$150.00 |
350 lb. |
|
2016 |
Auto. Stop
Electronic Counter 230V, 60 Hertz*
Single Phase |
$21,490.00 |
$100.00 |
$150.00 |
350 lb. |

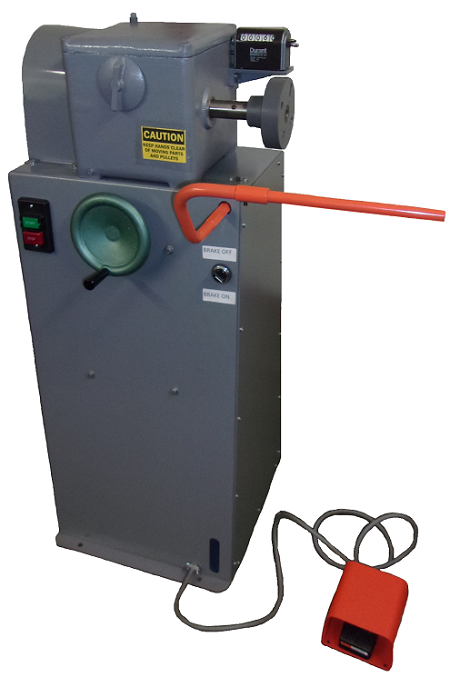

Model: 2020 & 2021
Pneumatic Brake & Clutch
|
Features an easy to read 5 digit counter in clear view
to reach required turns. Requires air to operate the
brake & clutch,70-PSI pressure and 5.0 cu. in.
Consumption.
To operate the machine, foot switch must be pressed.The
speed adjust crank on the front of the machine will
allow adjusting variable speed ranges.
For operator safety, in case of
emergency, the winder will stop instantly when the foot
switch is released. The foot switch has a long cord for
convenient positioning. It utilizes a heavy-duty spur
drive gearbox, engineered for extra heavy-duty
applications requiring exceptional pulling power.
Capacity: Maximum torque: fast
speed, 210 in Lbs; slow speed, 775 in Lbs. Change speed
with gearbox selector.
Dimensions: 19" x 20 3/4" base, 47 3/4" height.
Shaft Center height 42 1/2".
Face Plate: 5 in. Diameter.
Note:These
machines can be used with tensioning device or hand wire
tension.
|
 |
No phone orders. P.O by fax
or E-mail only.
A 4% Credit Card processing fee
will be added to applicable orders.
|
Model # |
Description |
Price- US. Dollars |
Packing & Handling |
Weight |
|
Domestic |
Export |
|
2020 |
Pneumatic
Coil Winder 115V, 60 Hertz*
Single Phase |
$16,940.00 |
$100.00 |
$150.00 |
350 lb. |
|
2021 |
Pneumatic
Coil Winder 230V, 60 Hertz*
Single Phase |
$16,940.00 |
$100.00 |
$150.00 |
350 lb. |

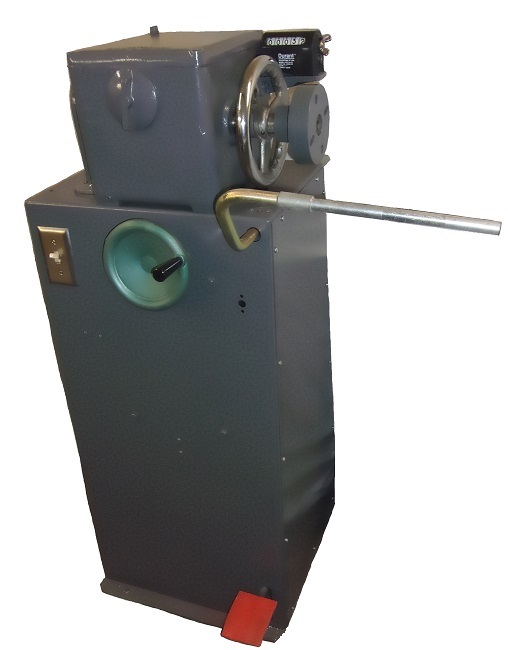

Manual Models: 2001 Thru 2007
 |
Series 2000 coil winder machines are
engineered for extra heavy-duty applications requiring
exceptional pulling power plus wide speed ranges. Speeds
are variable from 40 - 410 RPM with precise hand wheel
settings. All controls are front mounted for easy
accessibility. Engage the clutch and the unit
immediately winds at set speeds. All models are manually
operated with stop-start actuated by foot-pedal
combination brake and clutch. Easy to read 5 digit
counter in clear view to reach required turns.
Capacity: Maximum torque: fast speed, 210 in Lbs;
slow speed, 775 in Lbs.
Dimensions: 19" x 20 3/4" base, 47 3/4" height.
Shaft Center height 42 1/2".
Face Plate Shaft: Tapped to take a standard 1/2" -
13 bolt for quick set-up in winding solenoid,
electromagnet, and other small wound coils.
Attachments Optional:
No.2072
Reducing Collets, set of 2,
(1 ea.1/4" and 3/8" for adapting to standard 1/4" and
3/8" bolts for random wound bobbins and solenoid coils).
No.2009 10" Diameter aluminum faceplate for larger coil
forms.
Note:These
machines can be used with tensioning device or hand wire
tension.
|
|
No phone orders. P.O by fax or
E-mail only.
A 4% Credit Card processing fee will be
added to applicable orders.
|
Model # |
Description |
Price- US. Dollars |
Packing & Handling |
Weight |
|
Domestic |
Export |
|
2001 |
Coil
Winder Machine, 115V, 60 Hertz*,
Single Phase |
$14,672.00 |
$100.00 |
$150.00 |
330 lb. |
|
2002 |
Coil Winder
Machine, 230V, 60 Hertz*, Single
Phase |
$14,672.00 |
$100.00 |
$150.00 |
330 lb. |
|
2003 |
Coil Winder
Machine, 115V, 50 Hertz*, Single
Phase |
$14,672.00 |
$100.00 |
$150.00 |
330 lb. |
|
2004 |
Coil Winder
Machine, 230V, 50 Hertz*, Single
Phase |
$14,672.00 |
$100.00 |
$150.00 |
330 lb. |
|
2007 |
Coil Winder
Machine, less motor. |
$14,289.00 |
$100.00 |
$150.00 |
315 Lb |
|
2008 |
5" Diameter Aluminum faceplate with 1 1/4
" Bore |
$291.00 |
$10.00 |
$10.00 |
2 Lb |
|
2009 |
10" Diameter Aluminum faceplate with 1
1/4 " Bore |
$519.00 |
$10.00 |
$10.00 |
5 Lb |
|
2072 |
Reducing
Collets, set of 2, (1 ea.1/4" and 3/8"). |
$104.00 |
$10.00 |
$10.00 |
1 Lb |

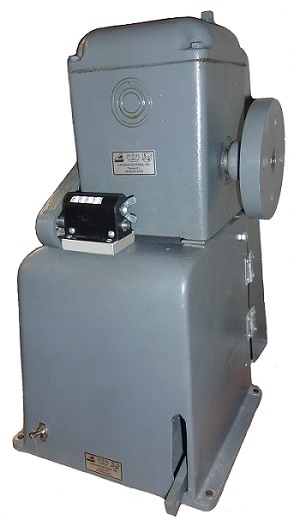

Model: 2057 & 2069
Bench Type Winder
| |
This compact, low cost coil winder is
designed with a 13 1/2" center height to accommodate Crown coil winding heads and can produce field, mush, armature, solenoid, electromagnet and
other small coils. It offers unexcelled performance for
smaller shops and fits well into larger shops as a second
utility winder.
It is engineered for smooth operation with constant torque
and positive stopping for precise control over every job.
Sealed ball bearings on all shafts guarantee true running
without vibration or chatter and a lifetime of
maintenance-free performance. This unit has the versatility
to handle practically any job coming into the shop giving
you the ability to offer a complete winding service package. Easy to read 5 digit counter in clear view to reach required turns.
Clutch and Brake: Controlled in one operation;
engaging the clutch releases the brake. Releasing the clutch
automatically engages the brake.
Speed Adjustments: Simple belt adjustments on three
speed pulleys will vary speed to low, medium, or high.
Face Plate Shaft: Tapped to take standard 1/2" -
13 bolt for quick set-up in winding solenoid, electromagnet,
and other small wound coils.
Speed: Low: 108 rpm, Medium: 220 rpm; High: 440
rpm.
Torque: At Low Speed, 28 ft.lbs.; At Medium
Speed, 15 ft.lbs.; at high Speed, 7 ft.lbs.
Attachments Optional:
No.2072
Reducing
Collets, set of 2, (1 ea.1/4" and 3/8" for adapting to
standard 1/4" and 3/8" bolts for random wound bobbins and
solenoid coils).
No.2071 - Foot Pedal for sure
action control of clutch and brake; 3' chain included.
NOTE: These
machines must be mounted to bench or table for proper stability and are designed for "HAND" wire tension. |
|
*WARNING* :
DO NOT USE WITH WINDING HEAD LARGER THAN 2103
No phone orders. P.O by fax or
E-mail only.
A 4% Credit Card processing fee will be
added to applicable orders.
|
Model # |
Description |
Price- US. Dollars |
Packing & Handling |
Weight |
|
Domestic |
Export |
|
2057 |
1/3 H.P. 115V, 50 / 60 Hertz Motor,
Single Phase, Heavy Duty Counter |
$5,335.00 |
$83.00 |
$150.00 |
85 lbs. |
|
2069 |
1/3 H.P. 230V, 50 / 60 Hertz Motor,
Single Phase, Heavy Duty Counter |
$5,335.00 |
$83.00 |
$150.00 |
85 lbs. |
|
2071 |
Foot Pedal for sure action control of
clutch and brake; 3' chain included. |
$253.00 |
$10.00 |
$10.00 |
2 Lbs |
|
2072 |
Reducing collets set of 2 ( 1 each 1/4 & 3/8) |
$104.00 |
$10.00 |
$10.00 |
2 Lbs |
